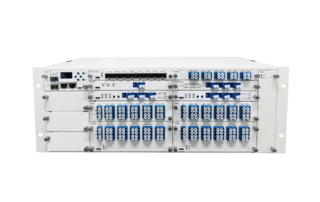

4U Rack mount chassis appearance description 1. 4U Rack Mount Chassis Explanation： ① NMU Slot: Network Management Unit ② Expansion slot: Support an eight Ethernet switch cards or other cards ③ Power 1 slot: Support AC/DC power supply and hot swap ④ Power 2 slot: Support AC/DC power supply and hot [...]

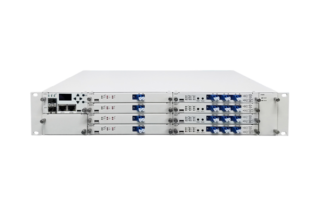

2U Rack mount chassis appearance description 1. 2U Rack Mount Chassis Explanation： ① NMU Slot: Network Management Unit ② Expansion slot: Support an eight Ethernet switch cards or other cards ③ Service card slot: Support max 8 service cards mixed interpolation and hot swap ④ Fan slot: Support 2U fan hot swap [...]

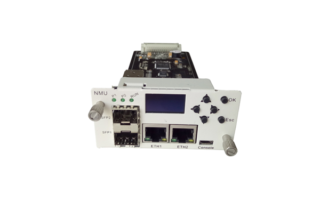

Network Management Interface NMU card panel Explanation： ① Equipment status indicator: P1(Power1), P2(Power2), RUN ② HD dual color LCD display screen ③ Operation keys ④ Ethernet communication interface ⑤ Micro USB equipment upgrade interface ⑥ Optical transceiver slot（Support 100/1000Mbps SFP） ⑦ Optical transceiver working status indicator [...]
Carry Service Platfrom 1U Chassis 2U Chassis 4U Chassis Parameter index Parameters Unit Specifications Environmental parameter Working temperature ℃ -10~ 60℃ Storage temperature ℃ -20℃~ 75℃ Relative temperature ℃ 5% ~ 95% No condensation Size 1U mm 482.6W×300D×44.5H 2U mm 482.6W×300D×86H 4U [...]
1U Rack mount chassis appearance description 1. 1U Rack Mount Chassis Explanation： ① NMU Slot: Network Management Unit ② Service card slot: Support max 4 service cards mixed interpolation and hot swap ③ Fan slot: Support 1U fan hot swap and independent replacement ④ Scalable lug ⑤ Lug instillation position ⑥ Side [...]
