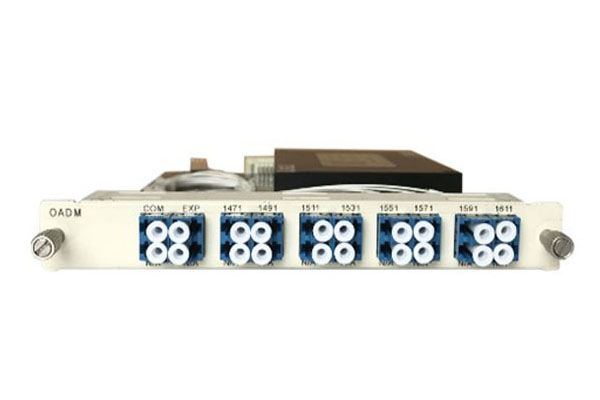

DWDM MUX DEMUX card

/DWDM MUX DEMUX card

DWDM MUX DEMUX card

Product features

  • Low insertion loss

  • Low polarization dependent loss

  • High channel isolation

  • Good environment reliability

  • High level of integration by plug-in design

Product overview

DWDM: Dense Wavelength Division Multiplexing is a metropolitan area network backbone layer or a long wavelength division transmission technology. It transmits signal by making different ITU-T DWDM wavelength signals multiplex to single fiber in receiving terminal. It decomposes composite signal into different ITU-T DWDM wavelength signal.

Performance index

Parameters Unit Specifications
Wavelength Range ITU channels 186.6 to196.1 THz
Channel Center Wavelength nm ITU channels
Channel Spacing Ghz 100
Channel Pass band (@-0.5dB) nm 0.22
Channel No. λ 2 4 8 16
Insertion Loss dB ≤ 1.0 ≤ 2.0 ≤ 3.5 ≤5.2
Adjacent Channel Isolation dB ≥ 30
Non-adjacent Channel Isolation dB ≥ 45
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
PDL dB ≤ 0.1 ≤ 0.15 ≤ 0.20 ≤ 0.25
Polarization mode dispersion ps ≤ 0.1
Directivity dB ≥ 50
Return loss dB ≥ 45
Optical Power mW ≤ 500
