Machine frame appearance description
Machine frame:
1U Machine frame:
Explanation:
① NMU Slot: Network Management Unit
② Service card slot: Support max 4 service cards mixed interpolation and hot swappable
③ Fan slot: Support 1U fan hot swap and independent replacement
④ Scalable lug
⑤ Lug instillation position
⑥ Side vent
⑦ Power 1 slot: Support AC/DC power supply and hot swappable
⑧ Power 2 slot: Support AC/DC power supply and hot swappable
⑨ Grounding screw

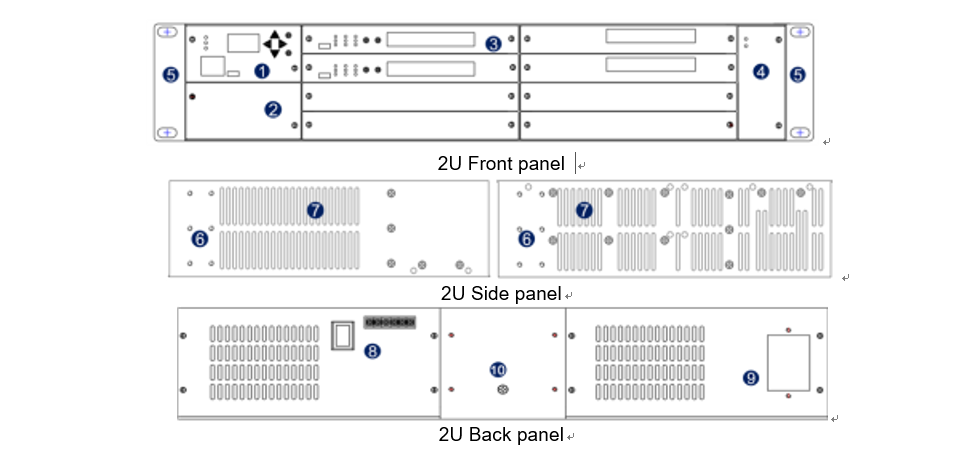

2U Machine frame:
Explanation:
① NMU Slot: Network Management Unit
② Expansion slot: Support an eight Ethernet switch cards or other cards
③ Service card slot: Support max 4 service cards mixed interpolation and hot swappable
④ Fan slot: Support 1U fan hot swap and independent replacement
⑤ Scalable lug
⑥ Lug instillation position
⑦ Side vent
⑧ Power 1 slot: Support AC/DC power supply and hot swappable
⑨ Power 2 slot: Support AC/DC power supply and hot swappable
⑩ Grounding screw

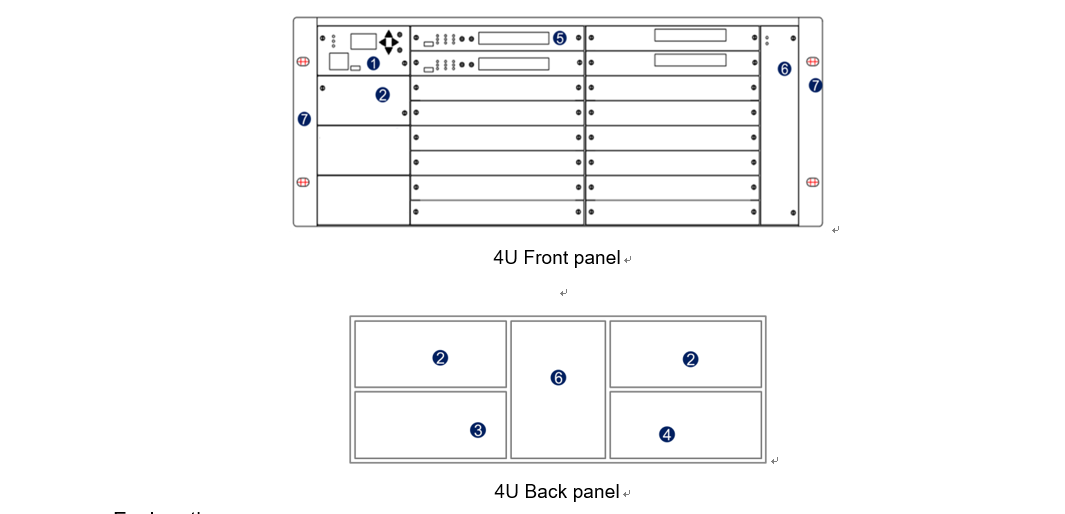

4U Machine frame
Explanation:
① NMU Slot: Network Management Unit
② Expansion slot: Support an eight Ethernet switch cards or other cards
③ Power 1 slot: Support AC/DC power supply and hot swappable
④ Power 2 slot: Support AC/DC power supply and hot swappable
⑤ Service card slot: Support max 4 service cards mixed interpolation and hot swappable
⑥ Fan slot: Support 1U fan hot swap and independent replacement
⑦ Scalable lug

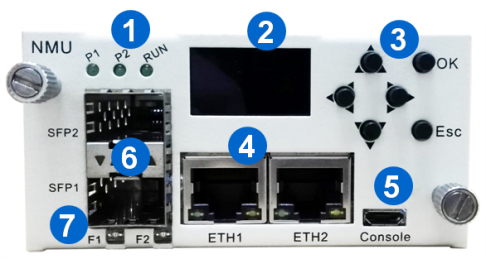

NMU card
Explanation:
① Equipment status in
dicator: P1(Power1), P2(Power2), RUN
② HD dual color LCD display screen
③ Operation keys
④ Ethernet communication interface
⑤ Micro USB equipment upgrade interface
⑥ Optical transceiver slot(Support 100/1000Mbps SFP)
⑦ Optical transceiver working status indicator
Equipment management
Other component cards
Fan-1U card
![TNO2000 Service Carry Platform for Tryin optical service cards 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-600.jpg)
AC-1U Card
![TNO2000 Service Carry Platform for Tryin optical service cards 2 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-2-600.jpg)
DC-1U Card
![TNO2000 Service Carry Platform for Tryin optical service cards3 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards3-600.jpg)
Fan-2U card
![TNO2000 Service Carry Platform for Tryin optical service cards 4 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-4-600.jpg)
AC-2U Card
![TNO2000 Service Carry Platform for Tryin optical service cards 5 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-5-600.jpg)
DC-2U Card
![TNO2000 Service Carry Platform for Tryin optical service cards3 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards3-600.jpg)
Fan-4U card
![TNO2000 Service Carry Platform for Tryin optical service cards 7 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-7-600.jpg)
AC-4U Card
![TNO2000 Service Carry Platform for Tryin optical service cards 2 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards-2-600.jpg)
DC-4U Card
![TNO2000 Service Carry Platform for Tryin optical service cards3 600](https://www.tryincn.com/wp-content/uploads/TNO2000-Service-Carry-Platform-for-Tryin-optical-service-cards3-600.jpg)
Parameter index
Parameters | Unit | Specifications | |
Environmental parameter | Working temperature | ℃ | -10~ 60℃ |
Storage temperature | ℃ | -20℃~ 75℃ | |
Relative temperature | ℃ | 5% ~ 95% No condensation | |
Size | 1U | mm | 482.6W×300D×44.5H |
2U | mm | 482.6W×300D×44.5H | |
4U | mm | 482.6W×300D×176H | |
Power Supply | AC | V | 85~264,50~60hz |
DC | V | 36~72 | |
Consumption | 1U | W | < 50(Max) |
2U | W | < 100(Max) | |
4U | W | < 200(Max) |
Ordering Information
Chassis | – | NMU | Power 1 | Power 2 | Fan |
TN10 | – | 0: Without | 0: Without | 0: Without | 0: Without |
TN20 | – | 1: With | 1: AC | 1: AC | 1: Fan-1U |
TN40 | – | 2: DC | 2: DC | ||
The Chassis Default Config: with 1 NMU card, 2 power card, 1 fan card. |
