Tryin Optical Signal Amplification Products

Product features

  • High power output: up to 34dBm total output power

  • Low noise figure

  • Supports 1~16 channels 13~23dBm output

  • Supports adjustable output power

  • Supports single output power regulation

  • High stability and reliability: MTTF > 150,000 hours

Product overview

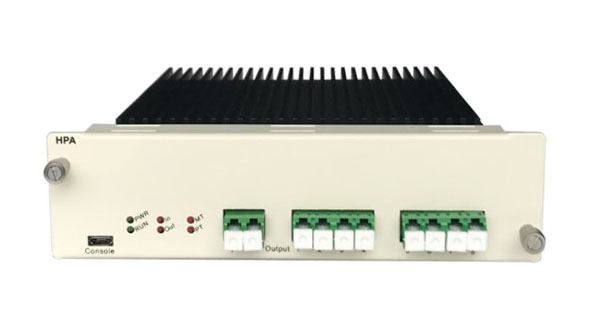

This product is a high power output C-Band Er-Yb co-doped double-clad fiber amplifier. The core device adopts a highly reliable multimode pump laser and double-clad fiber, which has the characteristics of high output power stability, good reliability, and good optical specifications.

This product adopts double-clad erbium co-doped amplification technology, which is different from conventional EDFA, and has 10 times higher electro-optical conversion efficiency than the conventional EDFA, so it has lower relative cost, more compact size and lower power consumption. Applicable to fiber-to-the-home FTTH, fiber to the floor and other large distribution ratio systems.

Performance index

Parameters Unit Symbol Min Typ Max
Operating Wavelength nm λc 1528 —– 1564
Max Output Power dBm Po —– —– 34
Output port number 1 16
Input Power dBm Pi -10 —– +10
Noise Figure dB NF —– 5.0 6
Power/Gain Stability dB ΔPo —– ±0.05 ±0.1
Input Isolation dB ISOi 30 —– —–
Output Isolation dB ISOo 30 —– —–
Return loss dB RL —– —– -45
PDG dB PDG —– —– 0.3
PMD ps PMD —– —– 0.5
Consumption W P —– —– 35

Laser class information security

Ⅲb level laser products
With single-mode fiber pigtail connectors
Wavelength:0.96~1.68μm
Maximum power:<400mW
Products cannot be transported in a charged state
Note: this instruction outside of any control, regulation and treatment may result in hazardous radiation exposure
