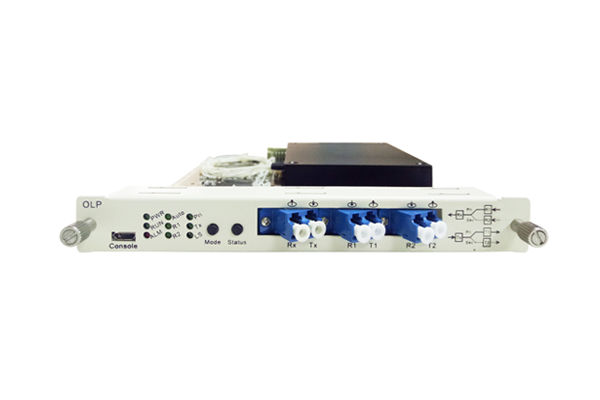

OLP Optical line protector card

Product features

  • Low insertion loss

  • Business non-invasive switch

  • Transparent transmission characteristics

  • Reduce the loss caused by line fault

  • Increase the reliability of the transmission network, improve network quality

  • High level of integration by plug-in design, which saves space of cabinet

  • Expansion is very convenient

Product overview

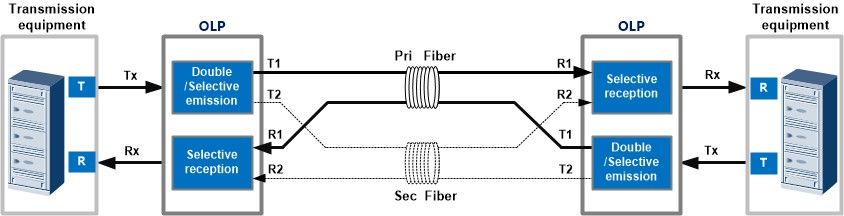

OLP-Optical Line Protection is a product that is used in the protection of network transmission line, the product can realize optical power monitoring and automatic switching. In optical communication network, OLP real-time monitoring optical power of working optical fiber and standby optical fiber. When the optical power value of working optical fiber is below the set switching threshold, the system raise the alarm prompt and switches to standby fiber automatically, which achieve line protection of optical transmission system.

Performance index

Parameters Unit Specifications
1+1 1:1
Operating Wavelength nm ITU CWDM or DWDM
Monitoring optical power range dBm +23~-50
Monitoring optical power accuracy dB ±0.25
Optical power resolution dB ±0.01
Return loss dB ≥55
PDL dB ≤0.05
WDL dB ≤0.01
IL dB TX<3.8,RX<1.2 TX<1.5,RX<1.2
Switching speed ms <15 <35
Operation life time >10000000
Consumption W <3
