Introduction to the OCS
OCS (Optical Circuit Switch) is an optical path control device that can be interconnected between multiple groups of input ports and multiple groups of output ports. The product adopts MEMS technology internally, which has the advantages of small size, fast switching speed, high reliability, and good environmental performance. In optical communication, it is mainly used for intelligent grooming of node fibers, multi-dimensional online monitoring, multi-route service protection, fiber equipment or network testing, etc.
Information Form
| Parameter Name | Technical Specification | Unit |
|---|---|---|
| 8×8 Insertion Loss | ≤ 2.4 | dB |
| 16×16 Insertion Loss | ≤ 2.3 | dB |
| 24×24 Insertion Loss | ≤ 3.2 | dB |
| 32×32 Insertion Loss | ≤ 3.5 | dB |
| 64×64 Insertion Loss | ≤ 4 | dB |
| Repeatability | ≤ 0.05 | dB |
| Return Loss | ≥ 45 | dB |
| Crosstalk | ≥ 50 | dB |
| Wavelength Dependent Loss (WDL) | ≤ 0.5 | dB |
| Polarization Dependent Loss (PDL) | ≤ 0.3 | dB |
| Switching Time | < 25 | ms |
| Operating Life | > 100,000,000 | cycles |
| Optical Power Handling | ≤ 500 | mW |
| Power Consumption (1U) | < 50 (Full Load) | W |
| Power Consumption (2U) | < 100 (Full Load) | W |
| Operating Temperature | -10 ~ 60 | ℃ |
| Storage Temperature | -20 ~ 75 | ℃ |
| Relative Humidity | 5% ~ 95% Non-Condensing | - |
| AC Power Supply | 90-264 | V |
| DC Power Supply | 180-320 | V |
Functions of the OCS
Intelligent Optical Path Management & Cross-Connection
Supports 8/16/32/64-channel optical input/output ports, enabling flexible cross-connection and optical path interworking for optical transmission information. Features real-time port optical power monitoring to ensure link status visibility and precise control, meeting the demanding scheduling requirements of complex optical network architectures.
Multi-Protocol Visual Monitoring & O&M System
Provides three monitoring protocols – CLI, SNMP, and Web – with visualized optical path presentation. Operators can gain real-time visibility into optical power, connection topology, and alarm information through multi-dimensional management interfaces, significantly improving fault localization efficiency and remote management capabilities.
High-Reliability Hardware Architecture & Compute-Intensive Scenario

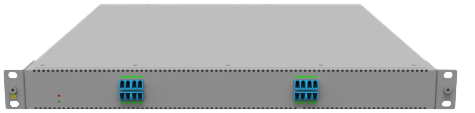

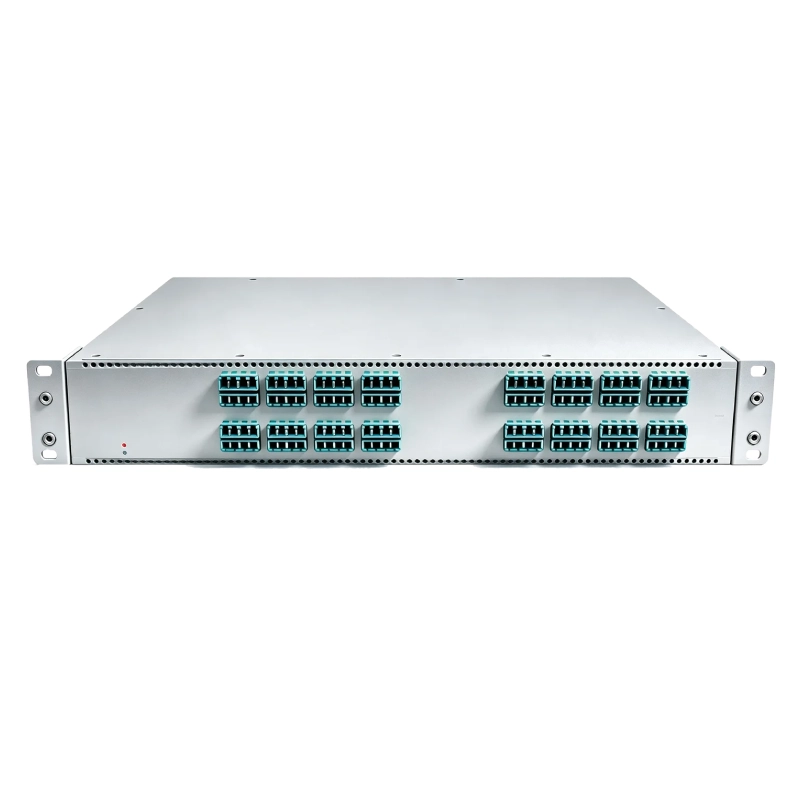

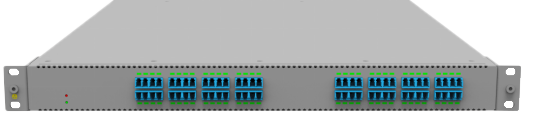

Adopts 1+1 AC/DC hot-swappable redundant power supply to ensure operational stability. Available in 1U/2U compact form factors, specifically optimized for high-performance computing scenarios such as supercomputing centers and AI training. Focused on high-end compute-intensive applications including scientific research, military/defense, and ultra-large-scale data centers.
