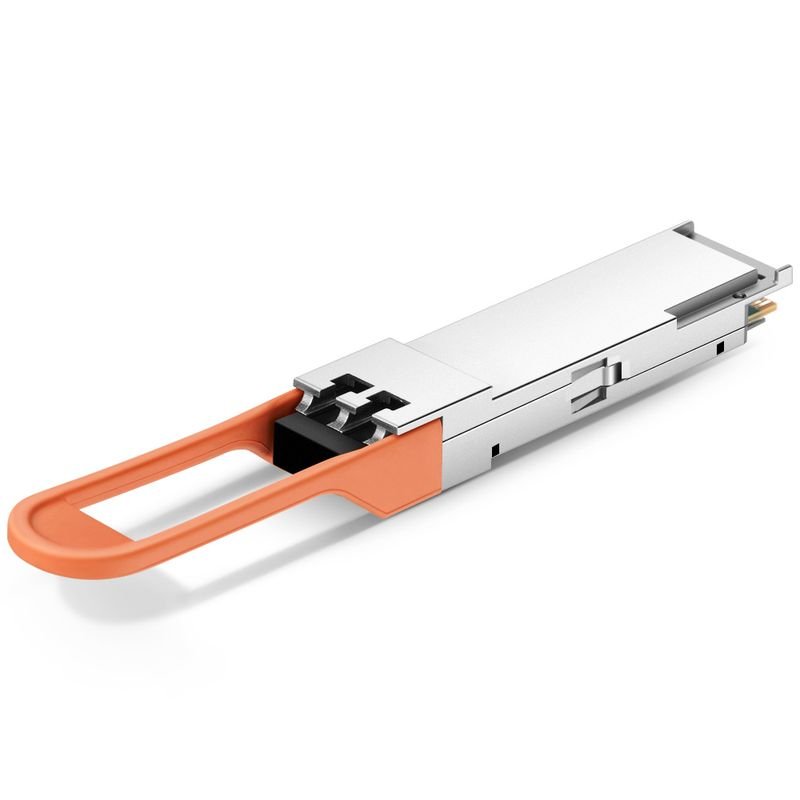

100G QSFP28 1310nm 40km ER1
100G QSFP28 ER transceiver is designed to provide a convenient solution for 100G applications
in QSFP28 form factor.
The QSFP28 ER transceiver supports single 53.125GBd optical lane. The QSFP28 ER is designed for use up to
106.25Gb/s data rate and up to 40km link length.
The digital diagnostic management (DDM) interface and I2C interface is supported.
Product Features
Standard Compliance & Certifications
Compliant with 100G-ER1 MSA
Compliant with SFF-8679 MSA
hardware specification
Compliant with SFF-8636
Compliant with SFF-8661
RoHS Compliant
Optical Components
1310nm EML laser
APD receiver
Transmission Performance
Up to 40km on 9/125um SMF
Operating Temperature Options
(Commercial) 0 ℃ to +70 ℃
Application & Usability Features
Trouble-free installation and network bring-up
Applications
- Data Center
- 100 Gigabit Etherne
Information Form
| Customer Part Number | Output Power (OMA each lane) | Receiver | Sensitivity (OMA each lane) | Reach | Temp | DDM | RoHS |
|---|---|---|---|---|---|---|---|
| QOT-ER1-100G-1310-40KM | 4.7~ 7.9dBm | APD | < -13.8dBm(OMA) | 40km | 0 ~ 70 °C | Available | Compliant |
