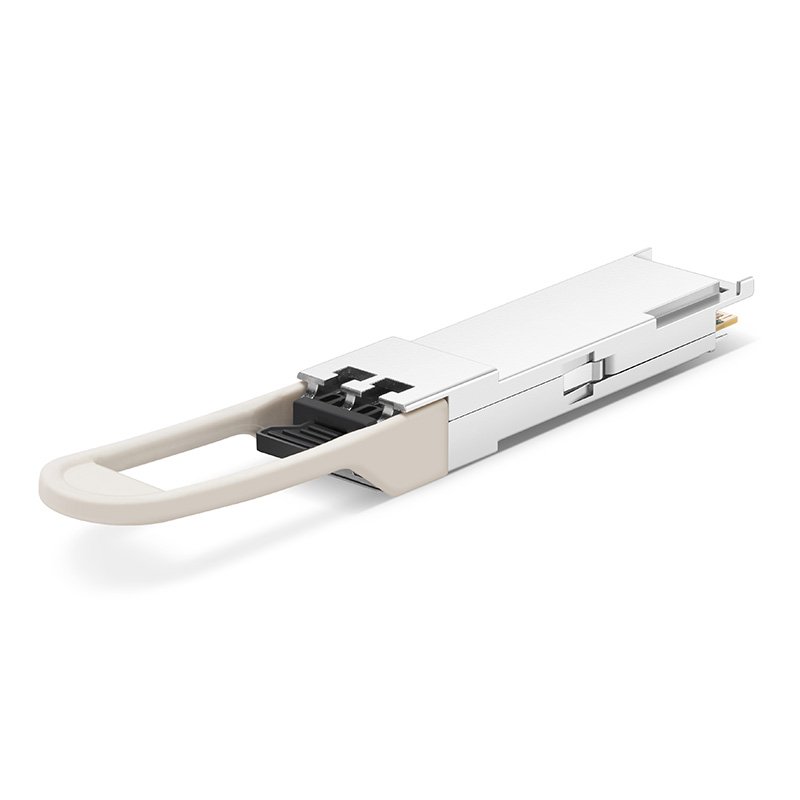

100G QSFP28 1310nm 80KM ZR4
QSFP28 transceiver modules are designed for 100 Gigabit Ethernet over single mode
fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4. Digital diagnostics functions are
available via the I2C interface, as specified by the QSFP28 MSA.
The QSFP28 transceiver are compliant with RoHS.
Product Features
Standard Compliance
Compliant with QSFP28 MSA
Class 1 laser safety certified
RoHS Compliant
Optical Components
4 cooled 25Gb/s channels LAN WDM EML TOSA
4 channels SOA PIN photo detector

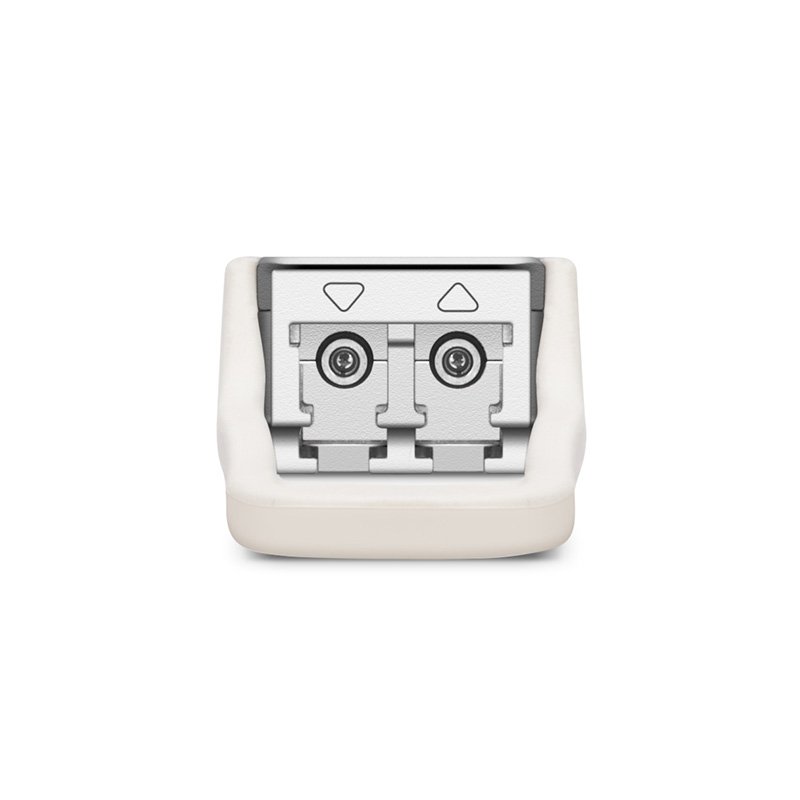

Duplex LC connector
Electrical & Power
Single +3.3V power supply
Transmission
Up to 80km on SMF with FEC
Operating Temperature
Commercial operating temperature: 0°C to +70°C
Applications
- 100GBASE-ZR4 Ethernet links
- Data center
Information Form
| Part Number | Transmitter | Output Power | Receiver | Sensitivity | Reach | Temp | DDM | RoHS |
|---|---|---|---|---|---|---|---|---|
| QOT-ZR4-100G-1310-80KM | LWDM EML | +2.0~ +6.5dBm | SOA PIN | < -28dBm | 80km | 0~ 70 °C | Available | Compliant |
